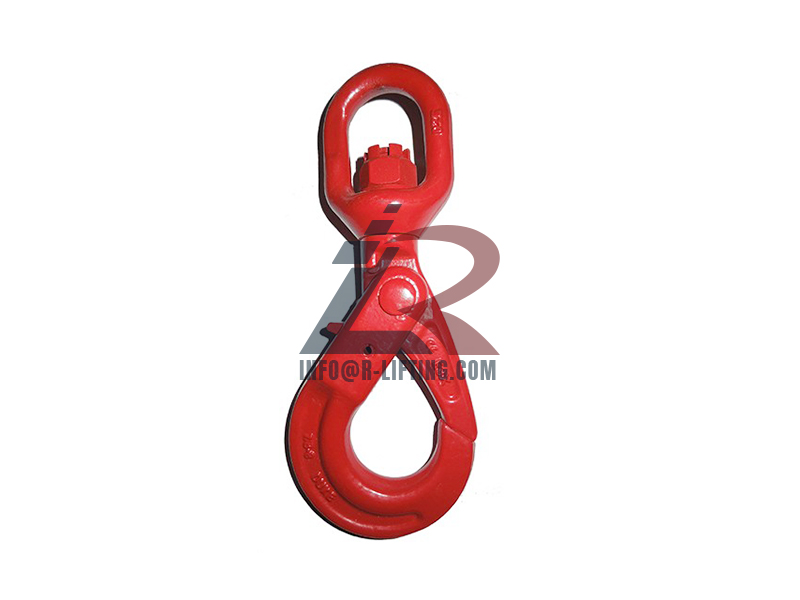

G80 Swivel Self-Locking Hook allows the hook to remain open until the load is engaged. The hook will not open until the trigger at the back is pressed.
Swivel Self Locking Hook to suit G80 Chain.
Product Features:
• Manufactured from super alloy steel.
• Conforms to AS3776.
• Swivel eye rotates 360 degrees.
• Latch closes automatically under load.
Specifications
| G80 SWIVEL TYPE SELFLOCKING SAFETY HOOK | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| ITEM NO | SIZE > | WEIGHT | WLL | B.L | DIMENSIONS(MM) | |||||
| MM | KG/PC | TON | TON | A | B | E | E1 | L1 | L | |
| RL-SLSH5-79 | 6 | 0.71 | 1.12 | 4.48 | 32.5 | 24 | 35 | 28 | 152.5 | 184 |
| RL-SLSH5-80 | 7/8 | 1.15 | 2 | 8 | 36 | 29.5 | 40 | 35.8 | 189 | 228 |
| RL-SLSH5-81 | 10 | 1.86 | 3.15 | 12.6 | 42 | 35 | 50 | 48 | 224 | 270 |
| RL-SLSH5-82 | 13 | 3.51 | 5.3 | 21.2 | 50 | 41 | 60 | 52.5 | 267 | 324 |
| RL-SLSH5-83 | 16 | 7.33 | 8 | 32 | 61 | 56.8 | 65 | 63.3 | 355.6 | 406 |
| RL-SLSH5-84 | 18/20 | 10.3 | 12.5 | 50 | 72 | 63 | 80 | 86 | 3778.2 | 460.5 |
| RL-SLSH5-85 | 22 | 17.5 | 15 | 60 | 97 | 98 | 83 | 76 | 466 | 564 |
| RL-SLSH5-86 | 26 | 23 | 21.2 | 84.8 | 123 | 115 | 106 | 96 | 544 | 661 |
| RL-SLSH5-87 | 32 | 81 | 31.5 | 126 | 140 | 146 | 140 | 135 | 679 | 892 |
