Stainless Steel Round Ring Plate, also known as Pad Eye Ring Plate., made from AISI 304 Stainless steel and has 2 counter sunk fixing holes for a strong fixing to your boat.
Product Features:
304 or 316 Stainless Staple/Eye Plates.
Welded for extra security and strength.
Round Plate with 2 countersunk holes.
5mm 6mm and 8mm Diameters available.

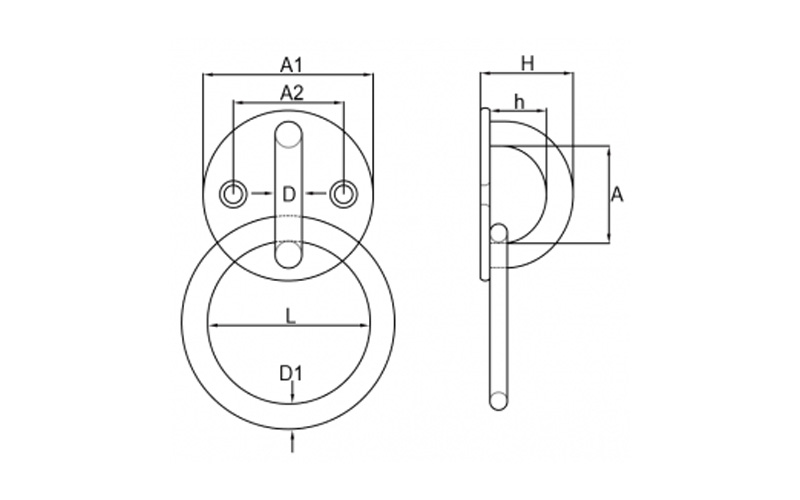

Specifications
| ITEM NO (mm) | D1 (mm) | A1 (mm) | A2 (mm) | H(mm) | h(mm) | A(mm) | D1(mm) | L(KGS) | WT |
|---|---|---|---|---|---|---|---|---|---|
| RL-SRPE7-449 | 5 | 33 | 18 | 20 | 12 | 13 | 5 | 30 | 0.039 |
| RL-SRPE7-450 | 6 | 40 | 23 | 26 | 17 | 17 | 6 | 35 | 0.066 |
| RL-SRPE7-451 | 8 | 50 | 29 | 32 | 21 | 21 | 8 | 45 | 0.136 |
