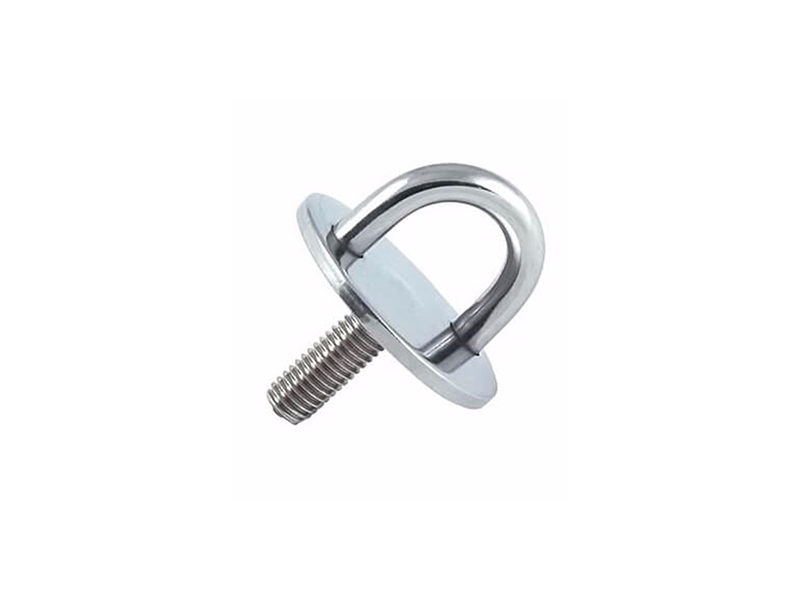

Round eye plate with threaded stud, in 304 or 316 grade stainless steel. These particular eye plates have a screwed thread on the back of the plate ready to be screwed into a ready-made hole eliminating the need for screws. Round eye plate for indoor and outdoor applications. Also referred to as a deck plate, mooring plate or pad eye.
Product Features:
304 or 316 grade stainless steel.
High Polished.
Thread stud for secure fixing with lock nut.
6mm 8mm and 10mm Diameters available.
Specifications

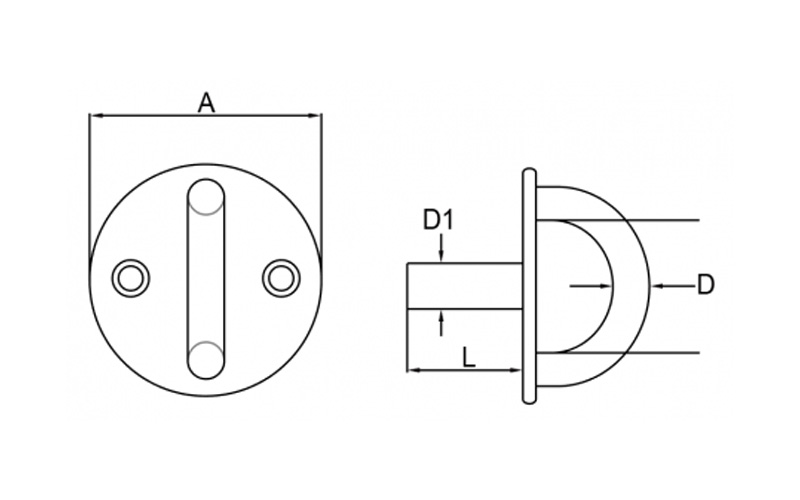

| ITEM NO (mm) | D1 (mm) | D (mm) | A (mm) | L (KGS) | WT |
|---|---|---|---|---|---|
| RL-SRPE7-446 | 6 | 6 | 33 | 20 | 0.028 |
| RL-SRPE7-447 | 8 | 8 | 40 | 23 | 0.047 |
| RL-SRPE7-448 | 10 | 10 | 50 | 25 | 0.082 |
