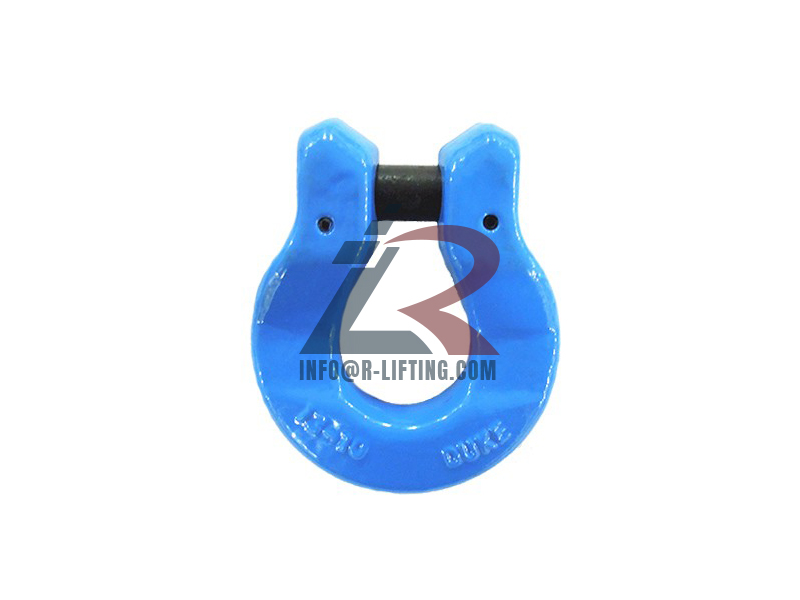

G100 Omega Links are commonly used in conjunction with recessed Head Rings and Chain for Chain Slings. They are also a popular fitting for variable type slings.
Product Features:
• G100 Components.
• Forged super alloy steel.
• Quenched & Tempered.
• Suitable for use with g100 chain.
Specifications

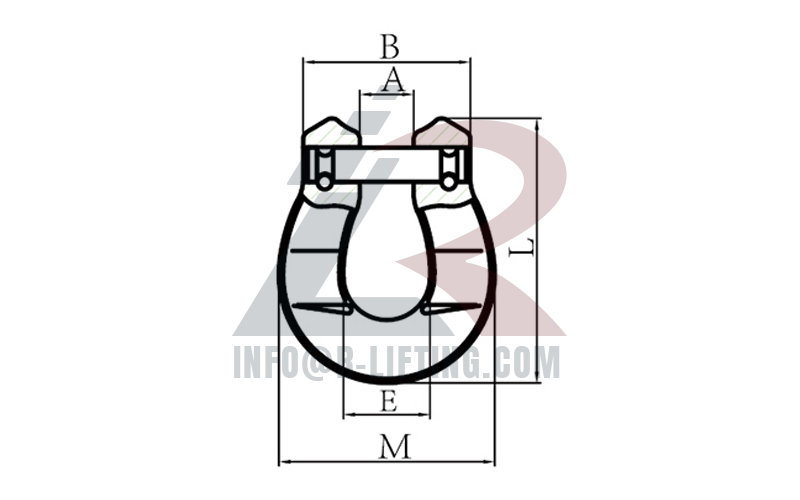

| ITEM NO | SIZE | WEIGHT | WLL | B.L | A | B | E | M | L |
|---|---|---|---|---|---|---|---|---|---|
| MM | KG/PC | TON | TON | MM | MM | MM | MM | MM | |
| RL-OL5-310 | 6 | 0.12 | 1.4 | 5.6 | 8.5 | 32.5 | 20 | 44 | 55 |
| RL-OL5-311 | 8 | 0.27 | 2.5 | 10 | 10.5 | 42 | 24 | 60 | 73.5 |
| RL-OL5-312 | 10 | 0.44 | 4 | 16 | 12.5 | 48.5 | 31 | 70 | 90 |
| RL-OL5-313 | 13 | 0.89 | 6.7 | 26.8 | 16 | 60 | 38.5 | 90 | 109 |
| RL-OL5-314 | 16 | 1.69 | 10 | 40 | 19 | 75.5 | 51 | 112 | 141.5 |
