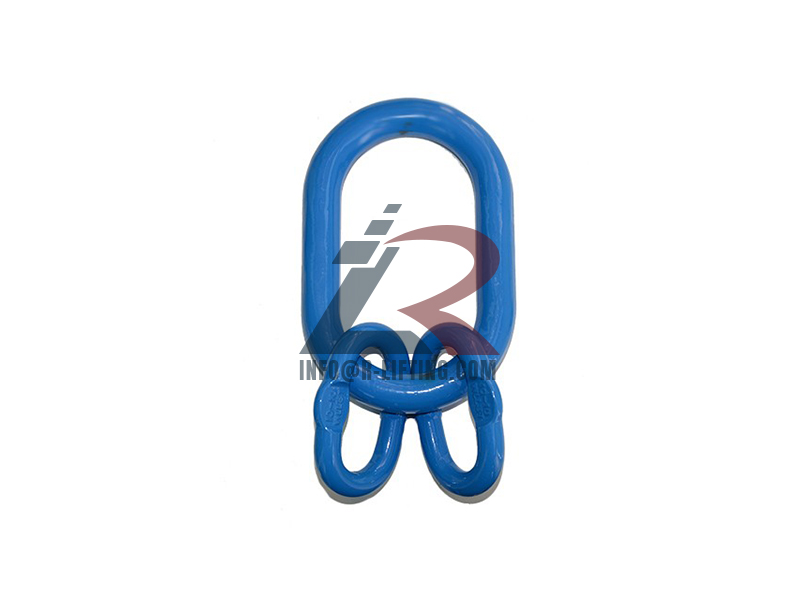

G100 Multi Master Link are designed with a large ring and two intermediate links to cater for two, three and four leg Chain Sling or Wire Rope Sling applications. The Master Link Sub Assemblies are manufactured using superior grade raw material as per international qualitative standards. Our range of Grade 100 Master Link Sub Assembly is available in standard as well as customized sizes.
Product Features:
• Forged super alloy steel –Quenched and Tempered.
• Suitable for G100 Chain.
• 25% stronger than G80.
• Individually proof test at 2.5 times Working Load Limit.
• Durable Powder Coated Finish.
• Main link: Forged Sub link: Welded.
• According to EN1677-4.
Specifications
| ITEM NO | SIZE | WEIGHT | WLL | CHAIN SIZE(MM) | A | B | D | a | b | d |
|---|---|---|---|---|---|---|---|---|---|---|
| MM | KG/PC | TON | 3 OR 4 LEG | MM | MM | MM | MM | MM | MM | |
| RL-MLA5-294 | 6 | 1.3 | 3 | 6 | 135 | 75 | 19 | 84 | 25 | 13 |
| RL-MLA5-295 | 8 | 2.33 | 5.3 | 8 | 160 | 90 | 23 | 70 | 35 | 16.5 |
| RL-MLA5-296 | 10 | 3.7 | 8 | 10 | 180 | 100 | 27 | 85 | 40 | 19 |
| RL-MLA5-297 | 13 | 6.5 | 14 | 13 | 200 | 110 | 33 | 115 | 50 | 23 |
| RL-MLA5-298 | 16 | 10.1 | 21.2 | 16 | 260 | 140 | 36 | 140 | 65 | 27 |
| RL-MLA5-299 | 20 | 22.8 | 33.6 | 20 | 350 | 190 | 50 | 150 | 70 | 33 |
| RL-MLA5-300 | 22 | 26 | 33.9 | 22 | 350 | 190 | 50 | 180 | 100 | 36 |
