Din6899b Wire Rope Thimble

The Galvanized Wire Rope Thimbles are made of mild steel and manufactured to a standard DIN 6899 (B), widely used for rigging applications. They are used to protect the inner eye area of a wire rope sling when subjected to high friction forces. Simply loop the cable around the outer groove and secure with a ferrule or wire rope grip.

GET A QUOTE

Description

Product Features:

General: Protection of cable loops.

Material: Carbon steel or Stainless steel.

Finish: Galvanized.

Standard: DIN 6899B

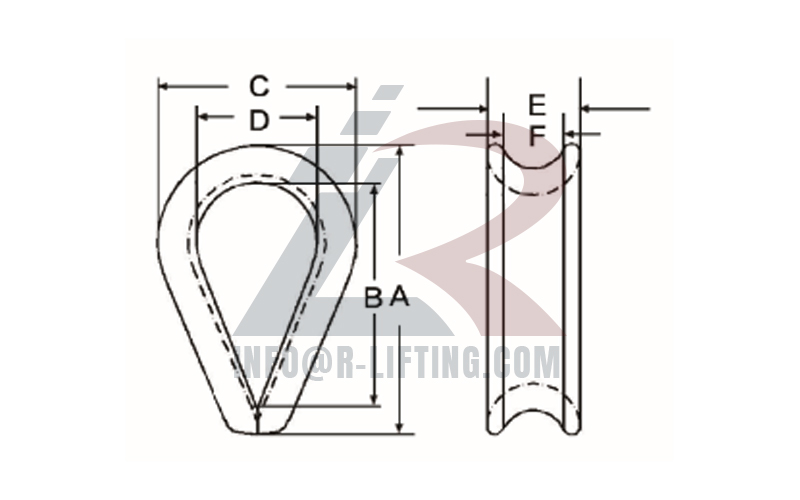

Din6899b Wire Rope Thimble

Specifications

R-LIFTING CODE	SIZE	DIMENSIONS(MM)						WEIGHT
ITEM NO	MM	A	B	C	D	E	F	KG/100PCS
RL-WRT512	3	28	19	18.5	12	6	3	0.5
RL-WRT513	4	30	21	20.5	13	7	4	0.8
RL-WRT514	5	33	23	22.5	14	8	5	1
RL-WRT515	6	39	26	27	16	10	6	1.6
RL-WRT516	7	43	30	30	18	11	7	1.9
RL-WRT517	8	48	32	33	20	12	8	3
RL-WRT518	10	58	38	39	24	14	10	4.7
RL-WRT519	12	69	45	47	28	17	12	6.8
RL-WRT520	13	73	48	50	30	18	13	8
RL-WRT521	14	77	51	53	32	19	14	10
RL-WRT522	16	88	58	60	36	22	16	14.5
RL-WRT523	17	95	61	65	38	25	17	18
RL-WRT524	18	100	64	68	40	26	18	20
RL-WRT525	20	113	72	75	45	28	20	29
RL-WRT526	22	123	80	82	50	30	22	32
RL-WRT527	24	135	90	92	56	34	24	47
RL-WRT528	26	145	99	100	62	36	26	59
RL-WRT529	28	162	112	110	70	38	28	80
RL-WRT530	30	175	120	120	75	42	30	110
