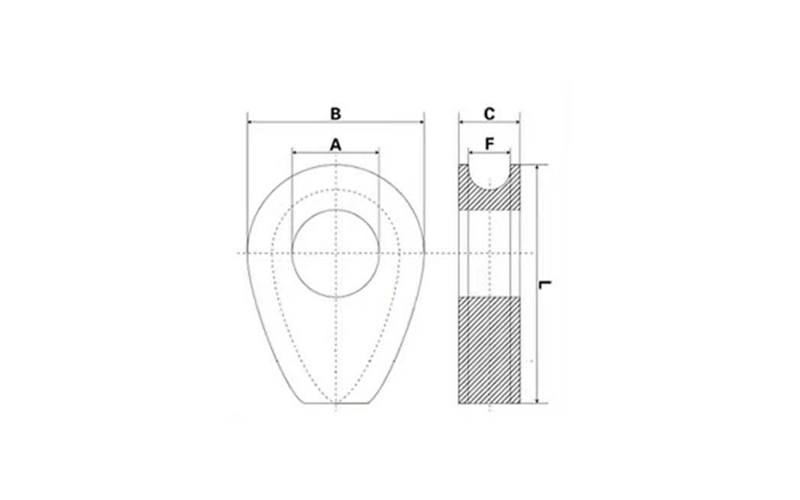

| Item NO | Dimension | Weight | |||||
|---|---|---|---|---|---|---|---|
| F | C | A | B | L | E | ||
| 8 | 8.6 | 14 | 20 | 40 | 56 | 20 | 0.08 |
| 10 | 10.8 | 17 | 25 | 50 | 70 | 20 | 0.17 |
| 12 | 12.9 | 21 | 30 | 60 | 84 | 20 | 0.32 |
| 14 | 15.1 | 24 | 35 | 70 | 98 | 20 | 0.5 |
| 16 | 17.2 | 28 | 40 | 80 | 112 | 20 | 0.78 |
| 18 | 19.4 | 31 | 45 | 90 | 126 | 20 | 1.14 |
| 20 | 21.5 | 35 | 50 | 100 | 140 | 30 | 1.41 |
| 22 | 23.7 | 38 | 55 | 110 | 154 | 30 | 1.96 |
| 24 | 25.8 | 42 | 60 | 120 | 168 | 30 | 2.41 |
| 26 | 28 | 45 | 65 | 130 | 182 | 30 | 3.46 |
| 28 | 30.1 | 49 | 70 | 140 | 196 | 30 | 4.3 |
| 32 | 34.4 | 56 | 80 | 160 | 224 | 30 | 6.46 |
| 36 | 38.7 | 63 | 90 | 180 | 252 | 30 | 9.77 |
| 40 | 43 | 70 | 100 | 200 | 280 | 30 | 12.94 |
| 44 | 47.3 | 77 | 110 | 220 | 306 | 40 | 17.02 |
| 48 | 51.6 | 84 | 120 | 240 | 336 | 40 | 22.75 |
| 56 | 60.2 | 98 | 140 | 280 | 392 | 45 | 35.56 |
| 60 | 64.5 | 105 | 150 | 300 | 420 | 45 | 48.36 |
