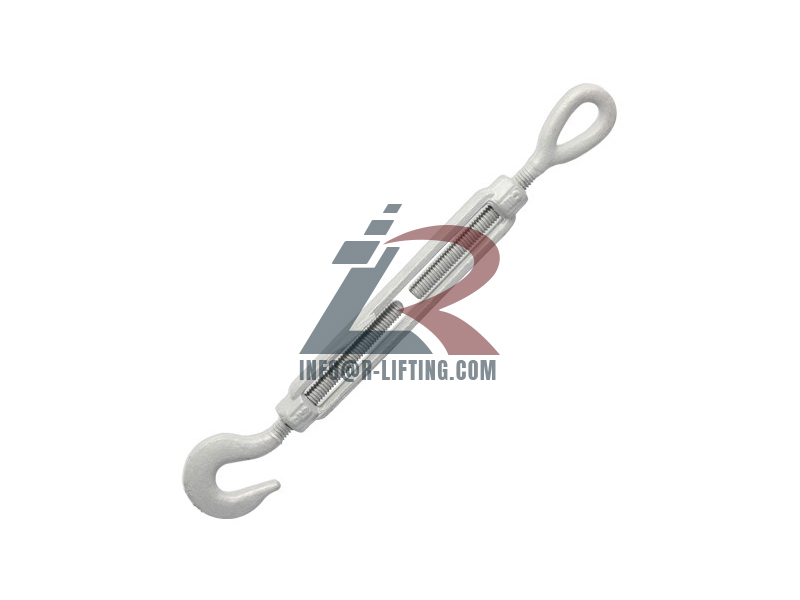

US Type Drop Forged Turnbuckle Hook & Eye Type

Hook & Eye turnbuckles feature end fittings that have been heat-treated utilizing its perfected quenched and tempered or normalizing methods. This develops a tougher material that ensures reliable performance in critical applications. Turnbuckle eyes are forged elongated, by design, to minimize stress in the eye and allow for easy connection to ropes, cables, tie rods, and other tensioning systems. These turnbuckles are available in sizes ranging from 1/4″ to 1″ to fit every project.

GET A QUOTE

Description

Product Features:

Meets the design requirements of US Federal Specifications.

End fittings are Quenched and Tempered, bodies heat treated by normalizing.

Proof tested to 2 x WLL and Minimum Break Force is 5 x WLL.

Excellent Fatigue Rating.

Certified for Lifting.

US Type Drop Forged Turnbuckle Hook & Eye Type

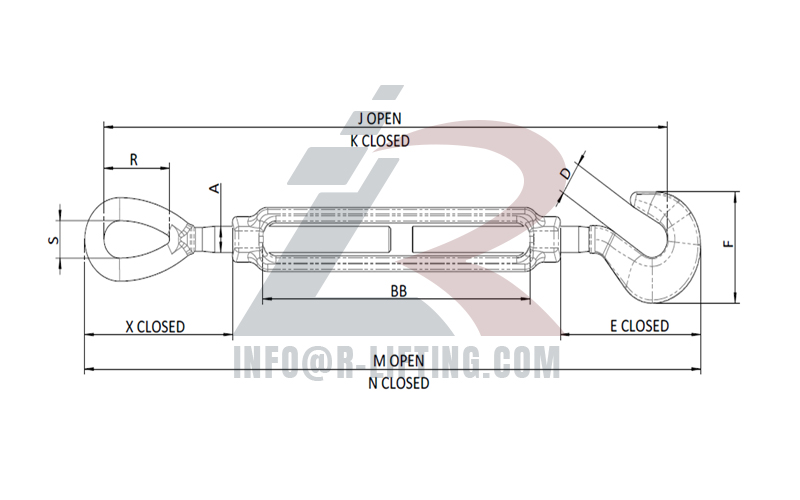

Specifications

ITEM NO, R-LIFTING CODE	Thread Dia.& Take Up (in.)	Working Load Limit (lbs.)	Weight Each (lbs.)	Dimensions (in.)
ITEM NO, R-LIFTING CODE	Thread Dia.& Take Up (in.)	Working Load Limit (lbs.)	Weight Each (lbs.)	A	D	E Closed	F	J Open	K Closed	M Open	N Closed	R	S	X Closed	BB
RL-UDFT354	1/4X4	400	0.29	0.25	0.45	1.59	1.27	11.46	7.46	12.09	8.09	0.78	0.34	1.75	4.00
RL-UDFT355	5/16X4-1/2	700	0.49	0.31	0.50	1.94	1.50	13.19	8.69	13.47	9.47	0.94	1.44	2.09	4.50
RL-UDFT356	3/8X6	1000	0.78	0.38	0.56	2.30	1.77	16.98	10.98	17.49	11.94	1.12	0.53	2.52	6.00
RL-UDFT357	1/2X6	1500	1.61	0.50	0.66	2.94	2.2	18.45	12.45	19.67	13.67	1.44	0.72	3.23	6.00
RL-UDFT358	1/2X9	1500	1.85	0.50	0.66	2.94	2.28	24.45	15.45	24.67	16.67	1.44	0.72	3.23	9.00
RL-UDFT359	1/2X12	1500	2.26	0.50	0.60	2.94	2.28	30.45	18.45	31.67	19.67	1.44	0.72	3.23	12.00
RL-UDFT360	5/8X6	2250	2.70	0.63	0.84	3.69	2.81	19.96	13.96	21.47	15.47	1.75	0.88	3.90	6.00
RL-UDFT361	5/8X9	2250	3.13	0.63	0.84	3.69	2.81	25.96	16.96	27.47	18.47	1.75	0.88	3.90	9.00
RL-UDFT362	5/8X12	2250	3.78	0.63	0.84	3.69	2.81	31.96	19.96	33.47	21.47	1.75	0.88	3.90	12.00
RL-UDFT363	3/4X6	3000	3.89	0.75	0.98	4.52	3.33	21.63	15.63	23.45	17.45	2.09	1.00	4.69	6.00
RL-UDFT364	3/4X9	3000	4.61	0.75	0.98	4.52	3.33	27.63	18.63	29.45	20.45	2.09	1.00	4.69	9.00
RL-UDFT365	3/4X12	3000	5.83	0.75	0.98	4.52	3.33	33.63	21.63	35.45	23.45	2.09	1.00	4.69	12.00
RL-UDFT366	3/4X18	3000	6.33	0.75	0.98	4.52	3.33	45.63	27.63	47.45	29.45	2.09	1.00	4.69	18.00
RL-UDFT367	7/8X12	4000	8.10	0.88	1.13	5.19	3.78	34.78	22.78	36.91	24.91	2.38	1.25	5.10	12.00
RL-UDFT368	7/8X18	4000	9.95	0.88	1.13	5.19	3.78	46.78	28.78	48.91	30.91	2.38	1.25	5.10	18.00
RL-UDFT369	1X6	5000	9.33	1.00	1.25	5.84	4.25	24.80	18.80	27.20	21.20	3.00	1.44	6.36	6.00
RL-UDFT370	1X12	5000	11.93	1.00	1.25	5.84	4.25	36.80	24.78	39.20	27.20	3.00	1.44	6.36	12.00
RL-UDFT371	1X18	5000	14.00	1.00	1.25	5.84	4.25	48.80	30.80	51.20	33.20	3.00	1.44	6.36	18.00
RL-UDFT372	1X24	5000	17.25	1.00	1.25	5.84	4.25	60.80	36.80	63.20	39.20	3.00	1.44	3.36	24.00
RL-UDFT373	1-1/4X12	6500	19.00	1.25	1.20	7.22	5.13	39.13	27.13	42.06	30.06	3.56	1.81	7.72	12.00
RL-UDFT374	1-1/4X18	6500	23.00	1.25	1.50	7.22	5.13	51.13	33.13	54.06	36.06	3.56	1.81	7.72	18.00
RL-UDFT375	1-1/4X24	6500	24.00	1.25	1.50	7.22	5.13	63.13	39.13	66.06	42.06	3.56	1.81	7.72	24.00
RL-UDFT376	1-1/2X12	7500	27.50	1.50	1.88	8.34	5.75	41.72	29.72	44.72	32.72	4.06	2.12	8.62	12.00
RL-UDFT377	1-1/2X18	7500	31.00	1.50	1.88	8.34	5.75	53.72	35.72	56.72	38.72	4.06	2.12	8.62	18.00
RL-UDFT378	1-1/2X24	7500	37.50	1.50	1.88	8.34	5.75	65.72	41.72	68.72	44.72	4.06	2.12	8.62	24.00
