S-hooks, shaped like the letter S, these are a quick, easy and safe way to connect chains from the towed vehicle to the towing vehicle. Our “S” Hook is made by stainless steel, has excellent strength with superior rust resistance for outdoor use.
Product Features:
Heat treated and zinc plated for a durable finish.
Fast, Easy Attachment for Permanent or Temporary Connection.
Not for overhead lifting.
Packing: Cartons and then on Pallets (customer are available).

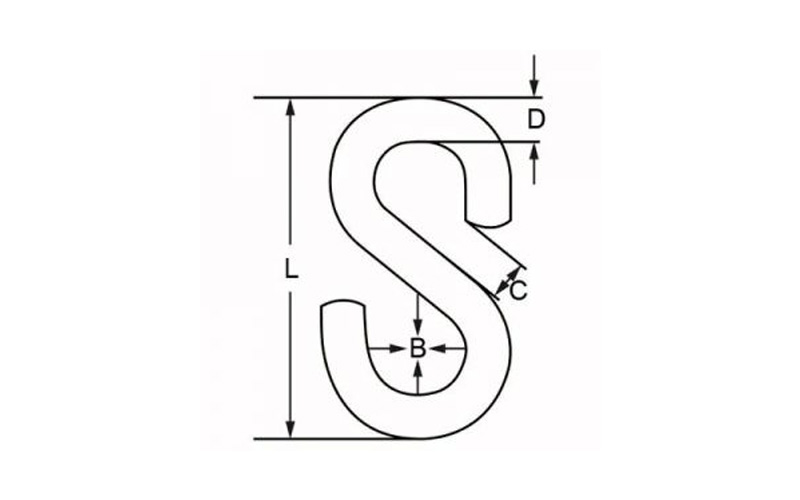

Specifications
| ITEM NO.(mm) | D(mm) | W(mm) | S(mm) | L(KGS) | WT |
|---|---|---|---|---|---|
| RL-SSSH7-620 | 3 | 9 | 4 | 30 | 0.003 |
| RL-SSSH7-621 | 4 | 12 | 6.5 | 40 | 0.008 |
| RL-SSSH7-622 | 5 | 15 | 8 | 50 | 0.017 |
| RL-SSSH7-623 | 6 | 17.5 | 9 | 60 | 0.028 |
| RL-SSSH7-624 | 8 | 24 | 12 | 80 | 0.069 |
| RL-SSSH7-625 | 10 | 30 | 13.5 | 100 | 0.13 |
