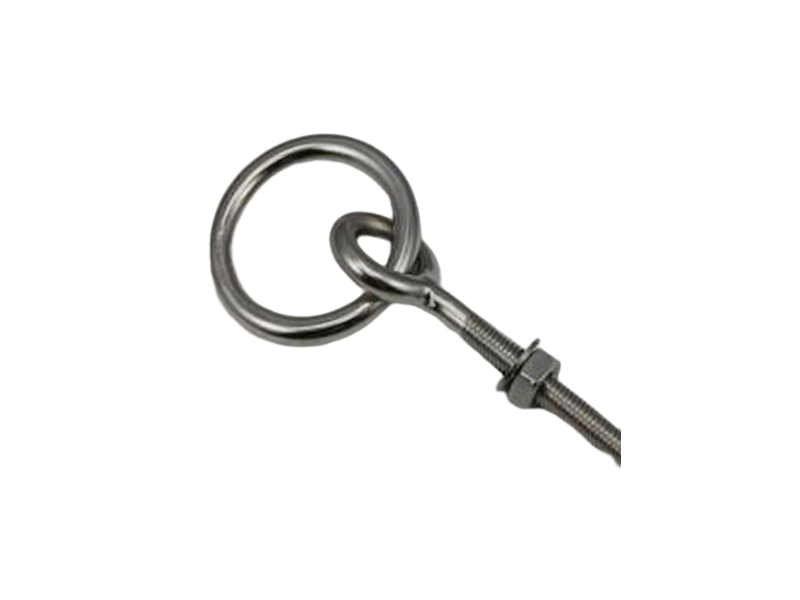

A Stainless Steel Welded Ring Eye Bolt has a ring designed to receive a shackle, wire rope or other rigging products.
Includes eye bolt, nut and washer.
Product Features:
AISI304 or AISI316 Stainless Steel Welded Ring Eye Bolts.
Polished finish.
Nut included.
Design for multiple applications.
Specifications

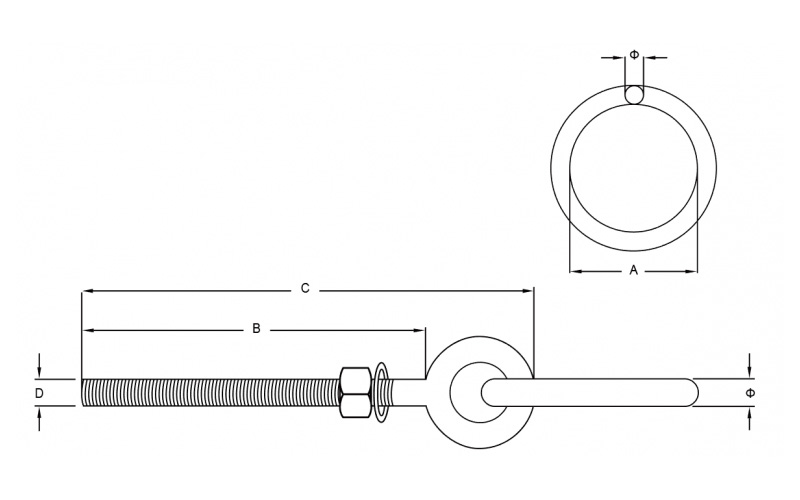

| ITEM NO (mm) | Φ (mm) | A (mm) | B (mm) | C (mm) | D (KGS) | SWL(KGS) | BL |
|---|---|---|---|---|---|---|---|
| RL-SREB7-367 | 5 | 30 | 40 | 60 | M5 | 200 | 800 |
| RL-SREB7-368 | 6 | 35 | 50 | 75 | M6 | 250 | 1000 |
| RL-SREB7-369 | 6 | 35 | 60 | 90 | M6 | 250 | 1000 |
| RL-SREB7-370 | 8 | 45 | 50 | 85 | M8 | 450 | 1800 |
| RL-SREB7-371 | 8 | 45 | 60 | 100 | M8 | 450 | 1800 |
| RL-SREB7-372 | 9 | 50 | 50 | 100 | M10 | 600 | 2400 |
| RL-SREB7-373 | 9 | 50 | 75 | 120 | M10 | 600 | 2400 |
| RL-SREB7-374 | 12 | 60 | 70 | 120 | M12 | 1000 | 4000 |
| RL-SREB7-375 | 12 | 60 | 100 | 150 | M12 | 1000 | 4000 |
| RL-SREB7-376 | 12 | 60 | 120 | 180 | M12 | 1000 | 4000 |
