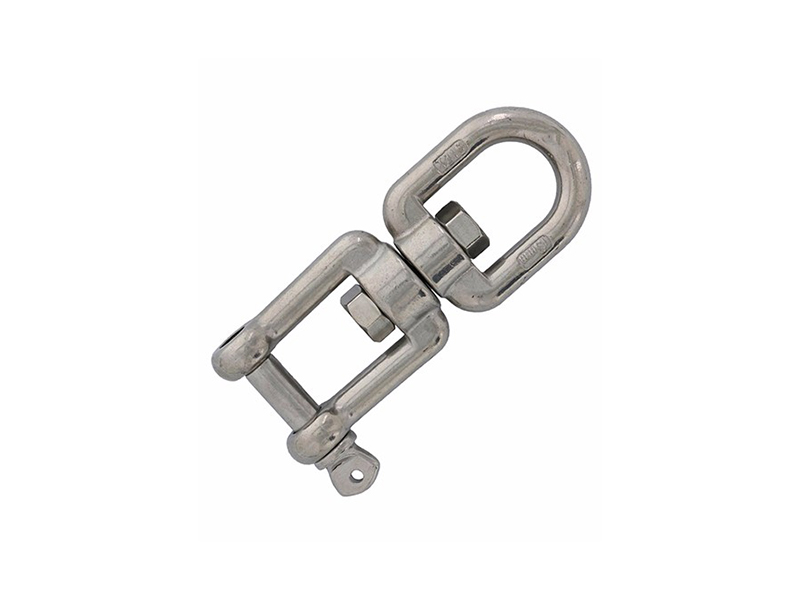

Stainless Steel Swivel Eye and Eye, manufactured from AISI316 Stainless steel they are corrosion resistant and have a welded nut pivot bolt. This robust swivel is suitable for a large variety of applications such as marine and architectural. It has an eye on either end. Our range of stainless steel swivel is available in standard as well as customized sizes.
Product Features:
Material: Stainless Steel.
Finished: High Polished.
Designed for applications where a quick swivel assembly with hook or quick link is expected.
An ideal marine mooring tool. Easy and convenient to use.
Specifications
| ITEM NO(mm) | d(mm) | L(mm) | H(mm) | B(mm) | A(KGS) | WT |
|---|---|---|---|---|---|---|
| RL-SSEJ7-242 | 5 | 60 | 11.5 | 13 | 10 | 0.039 |
| RL-SSEJ7-243 | 6 | 66 | 12 | 15 | 12 | 0.054 |
| RL-SSEJ7-244 | 8 | 92 | 16 | 20 | 16 | 0.133 |
| RL-SSEJ7-245 | 10 | 118 | 22 | 24 | 20 | 0.253 |
| RL-SSEJ7-246 | 13 | 152 | 28 | 32 | 26 | 0.615 |
| RL-SSEJ7-247 | 16 | 188 | 37 | 39 | 32 | 1.03 |
| RL-SSEJ7-248 | 19 | 229 | 44 | 41 | 38 | 2.07 |
