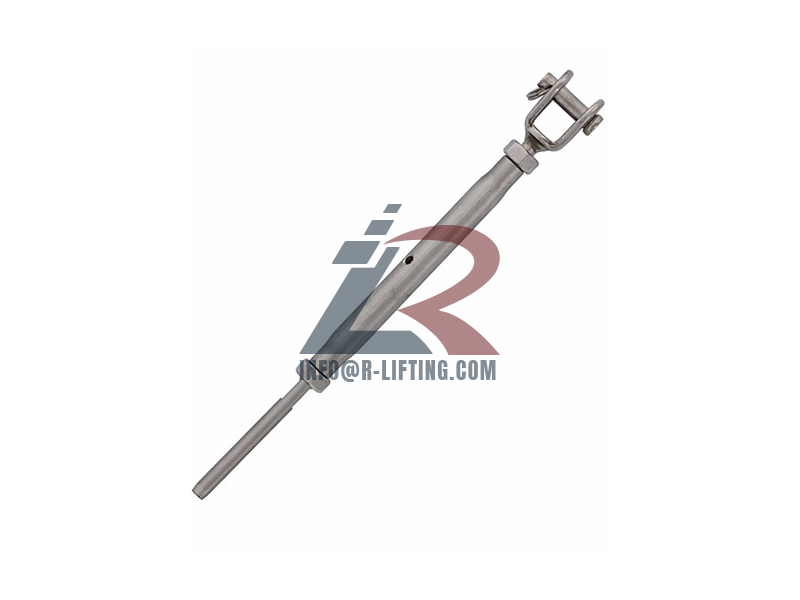

Stainless Steel Jaw Swage Stud European Type Turnbuckle

The Rigging Screws, also known as Barrel Strainers, Tensioners, Turnbuckles, Fork and Fork Rigging Screws, Bottle Screws or Adjusters. These jaw and swage stud turnbuckles are machined and stamped from type 316 stainless steel for added corrosion resistance and durability. The swage stud and jaw combination add to this turnbuckle’s versatility among many rigging turnbuckles.
Rigging Screws are commonly used in shade structures, wire balustrades, architectural rigging, wire rope, marine, and general purpose applications.

GET A QUOTE

Description

Product Features:

AISI 316 Marine Grade Stainless Steel.

Polished Finish.

Corrosion Resistant.

Removable Clevis Pin which is kept captive by a split ring.

Swage Fork or Jaw available for 2.5mm 3mm 4mm 5mm 6mm 7mm 8mm 10mm and 12mm diameter Steel Wire Ropes.

Stainless Steel Jaw Swage Stud European Type Turnbuckle

Specifications

ITEM NO	WIRE(mm)	D(mm)	L1(mm)	L2(mm)	L3(mm)	A(mm)	H(mm)	T1(mm)	D1(mm)	D2(mm)
RL-SGET7-73	2.5	M5	135	215	32	6.5	10	3	2.7	5.5
RL-SGET7-74	3	M6	175	245	39	7.5	10	3	3.3	6.35
RL-SGET7-75	4	M6	185	255	45	7.5	10	3	4.3	7.5
RL-SGET7-76	4	M8	200	275	45	11	11	3	4.3	7.5
RL-SGET7-77	5	M8	205	280	52	11	11	3	5.3	9
RL-SGET7-78	5	M10	230	320	52	12	14	4	5.3	9
RL-SGET7-79	6	M10	245	335	64	12	14	4	6.4	12.6
RL-SGET7-80	6	M12	285	400	64	14	20	5	6.4	12.6
RL-SGET7-81	8	M12	305	420	80	14	20	5	8.4	16
RL-SGET7-82	7	M14	315	435	70	15	22	5	7.4	14.2
RL-SGET7-83	8	M16	360	500	80	17	26	6	8.4	16
RL-SGET7-84	10	M16	370	510	90	17	26	6	10.5	18
RL-SGET7-85	10	M20	410	560	90	20	30	6	10.5	18
RL-SGET7-86	12	M20	430	580	105	23	35	6	12.6	20
