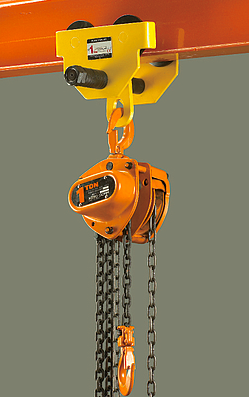

This plain push travel beam trolley is a great necessity to any chain hoist. A flange width to suit every beam and a capacity to suit almost every hoist. Easy to install and can be uninstalled at any location on the beam.
Products Introduction
Features:
Double sealed ball bearings
Built-in bumper guards
Application: Straight or Curved Track, Wide Variety of Beam Widths
Can be installed or removed at any point along the beam
Can be used with H and I-beams
Finish: painted
Specifications
| Item No | Model | WLL(tonnes) | A | B | C | H | l-Beam recommended A (mm) | l-Beam recommended B (mm) | Weight(kg) |
|---|---|---|---|---|---|---|---|---|---|
| RL-TP6-136 | TG1 | 1 | 242 | 236 | 211 | 115 | 80-146 | 64-140 | 8.7 |
| RL-TP6-137 | TG2 | 2 | 280 | 273 | 236 | 130 | 80-168 | 76-165 | 10.4 |
| RL-TP6-138 | TG3 | 3 | 300 | 320 | 295 | 164 | 88-168 | 76-203 | 24 |
| RL-TP6-139 | TG5 | 5 | 316 | 366 | 334 | 177 | 100-170 | 88-203 | 36 |
| RL-TP6-140 | TG10 | 10 | 343 | 389 | 460 | 237 | 122-203 | 125-203 | 83 |
