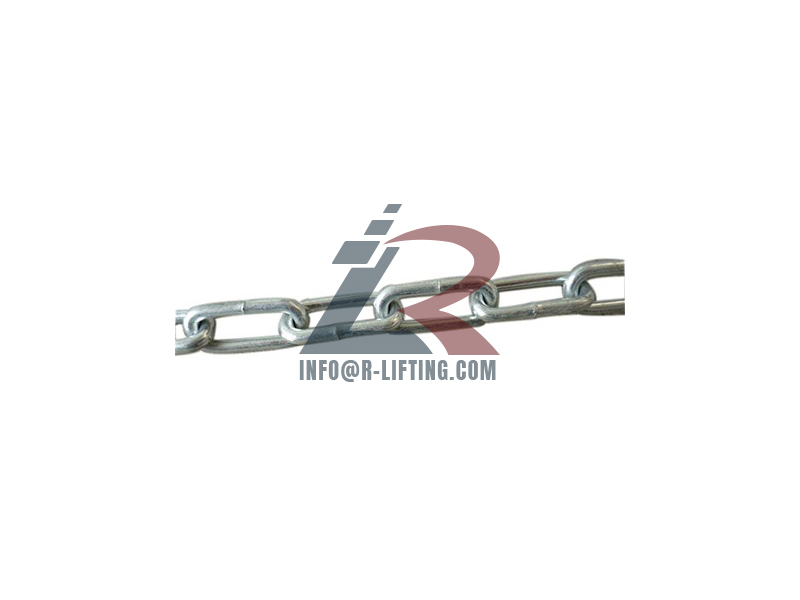

UK Standard Link Chain

UK Standard Long Link Chain

GET A QUOTE

ITEM NO, R-LIFTING CODE	LINK SPECIFICATION				TEST LOAD	BREAKING LOAD	NETWT PER 200FT(KG)
	D		L	W	TEST LOAD	BREAKING LOAD	NETWT PER 200FT(KG)
	IN	MM	MM	MM	KG	KG	B.F.	H.D.G.
RL-ASGC3-157	1/8	3.2	23	12	200	400	10.4	10.7
RL-ASGC3-158	5/32	4	27	15	300	600	16.6	17.5
RL-ASGC3-159	3/16	4.7	31	17	400	800	22.4	23.3
RL-ASGC3-160	7/32	5.5	32	19	550	1100	32	33
RL-ASGC3-161	1/4	6.35	33	21	750	1500	43.5	44.8
RL-ASGC3-162	5/16	7.94	48	31	1200	2400	68	70
RL-ASGC3-163	3/8	9.5	60	37	1700	3400	96	99
RL-ASGC3-164	7/16	11.11	71	41	2300	4600	126	129
RL-ASGC3-165	1/2	12.7	85	48.5	3000	6000	167	172
RL-ASGC3-166	5/8	15.8	114	61.5	4700	9400	256	264
RL-ASGC3-167	3/4	19	125	75	6800	13600	381	392
RL-ASGC3-168	7/8	22.2	140	88	9250	18500	527	543
RL-ASGC3-169	1	25.4	155	100	12150	24300	696	716
