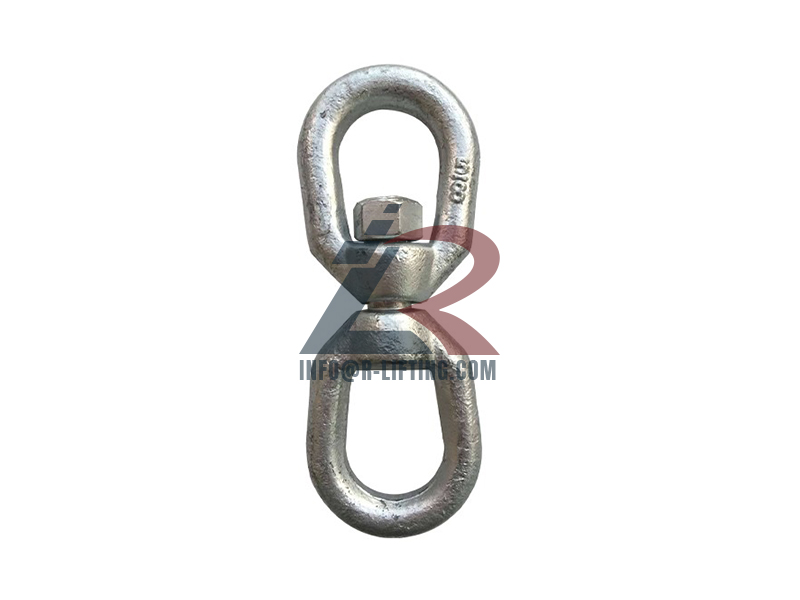

Eye-to-Eye Swivel, made by forged hot dipped galvanized steel, making them ideal for various marine and industrial rigging applications.
Commonly used with mooring anchors, mooring buoys, fishing buoys and also to attach multiple lengths of anchor line or chain.
Also available in: G-401 Chain Swivels, G-403 Jaw End Swivels.
Product Features:
Hot Dip Galvanized, Forged Steel Construction.
Meets performance requirements of Federal Specification RR-C-271 Type VII, Class 2.
Intended for use as positioning devices and are not intended to rotate under load.
DO NOT EXCEED THE WORKING LOAD LIMIT.
Specifications
R-LIFTING CODE | Size | Working | Weight | Dimensions | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
Load Limit | Each | ||||||||||
ITEM NO | (in.) | (lbs.)* | (lbs.) | A | B | C | D | J | M | R | S |
| RL-UFRS873 | 1/4 | 850 | 0.21 | 1.25 | 0.69 | 0.75 | 1.06 | 0.69 | 0.31 | 2.94 | 1.69 |
| RL-UFRS874 | 5/16 | 1250 | 0.39 | 1.63 | 0.81 | 1 | 1.25 | 0.81 | 0.38 | 3.56 | 2.06 |
| RL-UFRS875 | 3/8 | 2250 | 0.71 | 2 | 0.94 | 1.25 | 1.5 | 1 | 0.5 | 4.31 | 2.5 |
| RL-UFRS876 | 1/2 | 3600 | 1.32 | 2.5 | 1.31 | 1.5 | 2 | 1.31 | 0.63 | 5.44 | 3.19 |
| RL-UFRS877 | 5/8 | 5200 | 2.49 | 3 | 1.56 | 1.75 | 2.38 | 1.5 | 0.75 | 6.56 | 3.88 |
| RL-UFRS878 | 3/4 | 7200 | 4.02 | 3.5 | 1.75 | 2 | 2.63 | 1.88 | 0.88 | 7.19 | 4.31 |
| RL-UFRS879 | 7/8 | 10000 | 6.25 | 4 | 2.06 | 2.25 | 3.06 | 2.13 | 1 | 8.38 | 5 |
| RL-UFRS880 | 1 | 12500 | 8.95 | 4.5 | 2.31 | 2.5 | 3.5 | 2.38 | 1.13 | 9.63 | 5.75 |
| RL-UFRS881 | 1.1/4 | 18000 | 16.37 | 5.63 | 2.69 | 3.13 | 3.69 | 3 | 1.5 | 11.44 | 6.75 |
| RL-UFRS882 | 1.1/2 | 45200 | 45.79 | 7.09 | 3.88 | 4.09 | 3.88 | 3.75 | 2.25 | 16.69 | 9.91 |
