Type A Galv.Malleable Wire Rope Clip

Material: U bolt with mild steel and threaded. Body with malleable cast.
Packing: in gunny bags or cartons and then on pallets.
Finished: galv.instead of Hot Dipped Galv.

GET A QUOTE

Description

Specifications

Galv.MALLEABLE CAST Z.P.

STAINLESS STEEL 304 or 316

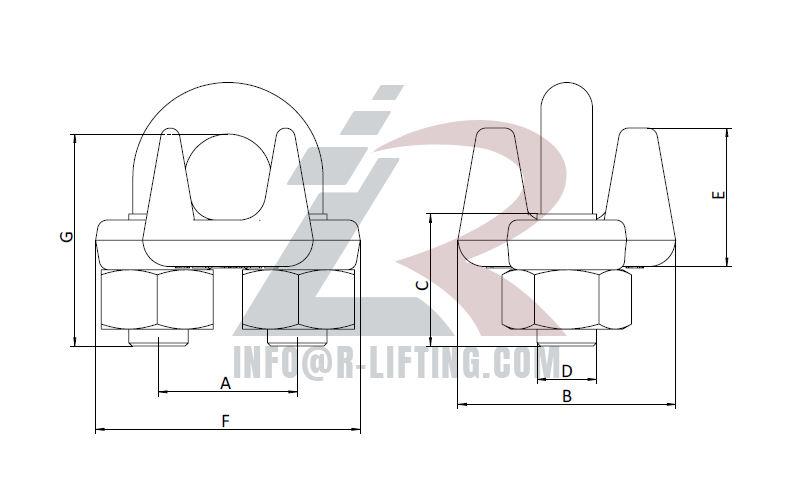

ITEM NO, R-LIFTING CODE	SIZE/MM	A/MM	B/MM	C/MM	D/ MM	E/MM	F/MM	G/MM
RL-GMWRC53	6	12	17	14	5	14	23	24.8
RL-GMWRC54	8	15	21	16	6	17	28	30.66
RL-GMWRC55	10	19	28	20	8	21	38	37.95
RL-GMWRC56	12	24	34	25	10	27	45	47.15
RL-GMWRC57	15	29	40	30	12	32	52	57.73
RL-GMWRC58	20	36	47	36	14	38	62	71.73
RL-GMWRC59	22	40	52	39	16	43	69	78.23
RL-GMWRC60	25	43	56	44	18	50	76	90.4
RL-GMWRC61	28	48	62	48	20	57	85	96.9
RL-GMWRC62	32	55	67	51	22	61	93	110.4
RL-GMWRC63	40	64	81	62	24	73	111	122.5
RL-GMWRC64	45	72	88	70	27	86	123	139.5
RL-GMWRC65	50	80	95	80	30	95	123	156
